High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V

High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V

  • High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V
  • High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V
  • High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V
High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V
Подробная информация о продукте:
Место происхождения: Сделано в Китае
Фирменное наименование: Maxpower/OEM
Сертификация: CB, CE, KC, ROHS,UN38.3,UL
Номер модели: 7242126 3200mah
Оплата и доставка Условия:
Количество мин заказа: 1000 шт
Цена: negociate
Упаковывая детали: 8шт/пузырь
Время доставки: 10-30days согласовывая ситуацию запаса
Условия оплаты: L/C, T/T, Western Union
Поставка способности: 200000 шт/день
контакт
Подробное описание продукта
Материал: полимер лития, чистый кобальт Размер: 7.2*42*126 мм
Напряжение: 3,7 В. Вес нетто: 145G
Емкость: 6000 мАч Сопротивление: ≤1.5mΩ
Ставка: 60с Максимальная скорость: 120C
Приложение: БЕЗ, беспилотный беспилотник

45C High Rate Li Ion Polymer Battery Pack 7242126 3200mah 3.7V UAV drone



KC CB UL certification



1.The battery draw and size info.

High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V 0

High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V 1



2. Cell specification and safty performance.



No Item Specification Remark
1 Nominal Capacity 3200 mAh 0.2 C discharge
2 Minimum. Capacity 3060mAh 0.2 C discharge
3 Nominal Voltage 3.7 V
4 Charge Voltage 4.2 ± 0.02 V
5 Charge Current Standard charge : 0.2C ( 640 mA)
6 Rapid charge : 1.0 C ( 3200 mA)
7 Charging Time Standard charge : 7.5 hours (Ref.)
8 Rapid charge : 1.5 hours (Ref.)
9  Standard dicharge current 640mA
10 Cont.. Discharge Current 120000mA
11 Burst. Discharge Current 45.0 C ( 144A ) ≤ 3 S
12 Cutoff Voltage 3.0 V
13 Resistance ≤ 1.5 mΩ 1kHz AC Method
14 Weight (Approx.) 145 g
15 Dimensions(T.W.H.)Thickness(厚度): 7.1 max mm
16 Width: 43.0 max mm
17 Length: 128 max mm
18 Operating Teerature Charge : 0 ~ 45℃
19 Discharge teerature : 0 ~ 45℃
20 Storage Teerature Short period less than 1month 0℃~35℃
Long period more than 1month 10℃~25℃

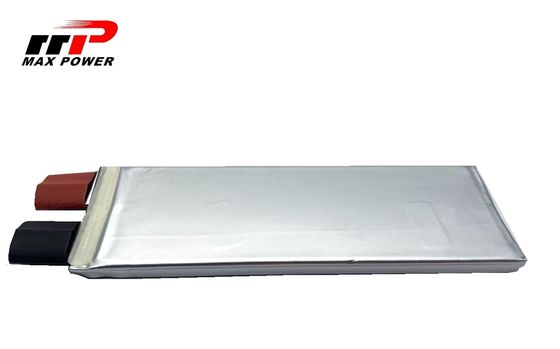

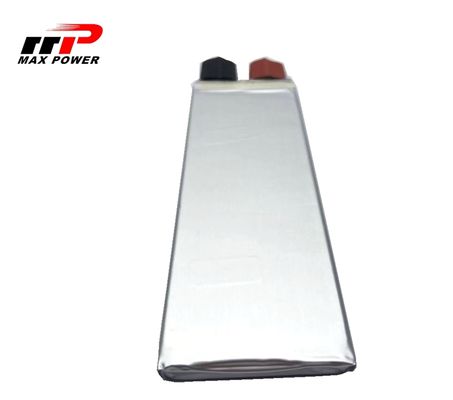

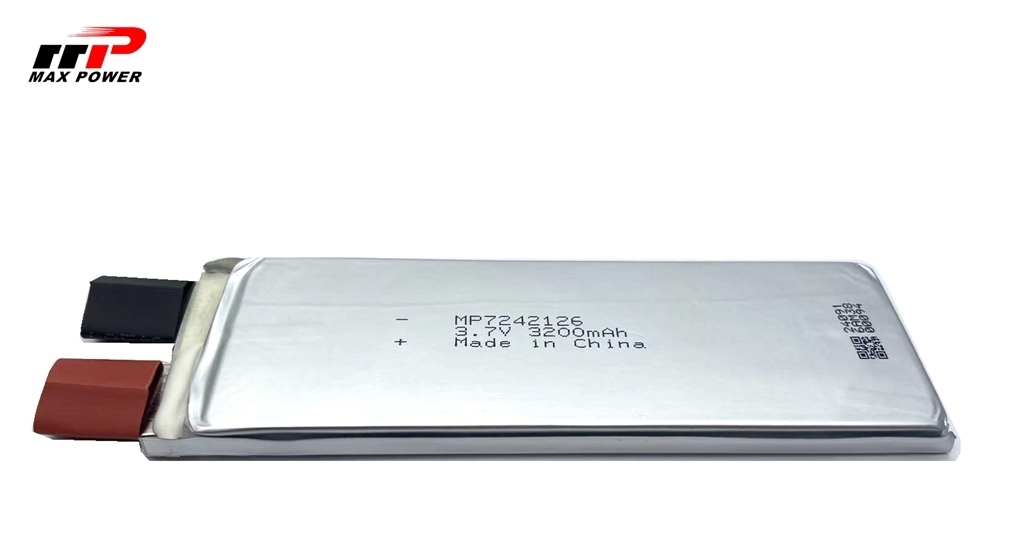

3. PIC of battery.



High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V 2



High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V 3







The application of the polymer battery:Unmanned drone, RC cars, RC boat,RC tools,Robot..







High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V 4

Waranty:



We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement.





Q&A:







1. Q:How to start the cooperate?



    A:  Lets start with our sale orders. In 3-5days will be ready the sales, then you test.We make the standard according



    the data sheet which we give.Once you confirm the quality, we can talk for further.



 2. Q: How long to make the cargos?



     A: Need 30day around if we dont have the stock of that model. Coz need strict test and high teerature,high voltage life ageing



    as well in every single pc,



 3. Q: What will be the packing?



     A:  We are using individual box for each battery cell and pallet packing for shipping.





For more please contact me freely, wish my 14 years in battery area experience can help you in your project.



High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V 5
